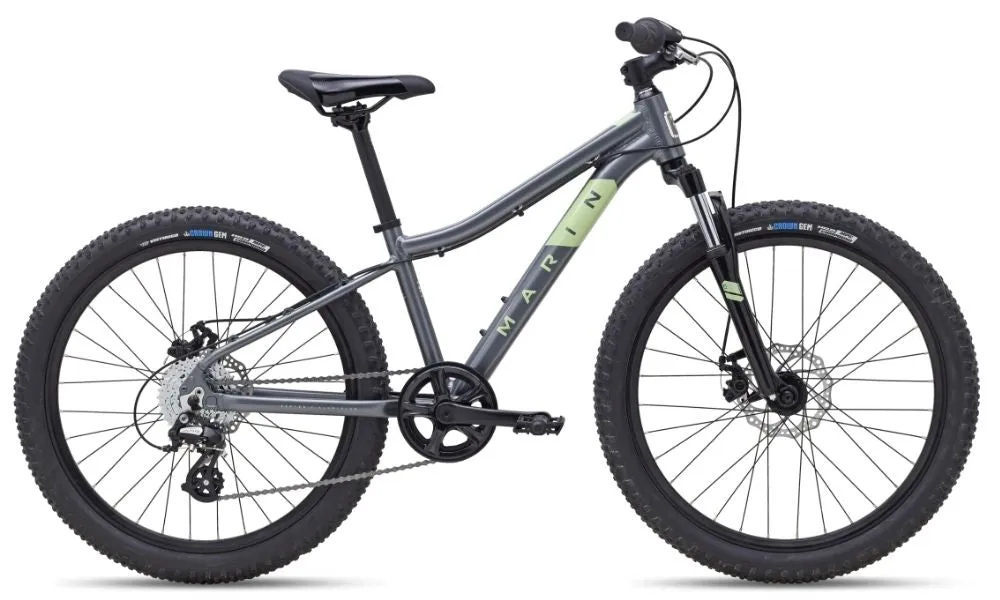

Marin 2022 Bayview Trail 24

The Bayview Trail 24" bike is built to get kids hooked on riding with quality components and fun graphics that will last for years of neighborhood and bike park service.

Specifications

Marin 2022 Bayview Trail 24

Frame

Colour: Cool Grey
Frame: Series 1 6061 Aluminum, 24” Wheels, IS Seatstay Disc Mount, 135mm Dropouts
Fork: SR Suntour XCT Jr 24", Pre-Load Adjust Coil Spring, 50mm Travel
Shock: N/A
Weight: N/A

Drivetrain

Crankset: Forged Alloy, 30T, 152mm, Ring Guardbr> Pedals: N/A
Chain: KMC Z50
Bottom Bracket: Sealed Cartridge Bearings, Square Taper
Rear Derailleur: Shimano Altus, 7-Speed
Front Derailleur: N/A
Derailleur Shifter: Shimano Revo Twist 1x7-Speed
Freewheel/Cassette: Shimano HG-20 7-Speed, 12-32T

Wheels

Tyres: Vee Tire Crown Gem, 24”x2.25”, Wire Bead
Wheels/Rims: Marin, Double Wall Alloy
Hubs: Formula, 32H

Braking System

Brakes: Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Brake Levers: Kids Specific Short Reach Alloy Lever

Other

Handle Bar: Marin Riser, 30mm Rise, 590mm Width
Stem: Marin Alloy, 60mm
Seat Post: Marin Alloy, 27.2mm
Saddle: Marin Kids MTB

Geometry

Marin 2022 Bayview Trail 24

STACK	502.75
REACH	331.92
HEADTUBE ANGLE	70°
HEADTUBE LENGTH	105
SEATTUBE ANGLE	73°
SEATTUBE LENGTH	321
TOPTUBE EFFECTIVE	485
BB HEIGHT	283
BB DROP	25
CHAINSTAY	400
WHEELBASE	946.97
STANDOVER HEIGHT	581.19
FORK OFFSET	40
SEATPOST DIAMETER	27.2
HANDLEBAR WIDTH	590
STEM LENGTH	70
CRANK LENGTH	152
